KYXLGCP Grab Type Packing Machine
Product Introduction:
This equipment is a packing machine designed and produced by our company with pneumatic + electric operation. Its advantages are compact structure, beautiful appearance, low energy consumption, stable operation and convenient operation. The driving device is a symmetrical double rocker arm, driven by a Japanese MITSUBISHI servo motor or a three-phase asynchronous motor, and it runs smoothly.
Product Properties:
Type: | Grab typ |
Model number: | KYXLGCP-02/03/04/05GD, KYXLGCP-02/03/04/05GDS |
Bottle: | 600ml PET bottle, specific reference sample |
Box: | Formed corrugated box |
Bottle arrangement: | according to packaging method |
Number of grabber groups: | 2 groups/3 groups/4 groups/5 groups |
Production capacity: | 600-2000 boxes/hour |
Bottle arrangement: | Two rows according to the packaged product, three rows are adjustable |
Mechanical specifications: | (length×width×height mm): 7500*1750*2500 (including conveyor belt) |
Power consumption: | AC/3phase/50Hz/380V, 5.5Kw |
Air consumption: | 0.6Mpa≤pressure≤0.8Mpa; 1200L/Min |
Machine weight: | about 1500KG |
Overview:
(1) Bottle grabber
According to the different appearance characteristics of the
product, the bottle grabbing mechanism, two sets of bottle grabber
sets, each specification
The product uses the corresponding bottle grabbing mechanism to
grab the bottle. The bottle grabber group adopts an air bag type
bottle grab head, which does not damage the bottle.
(2) Lifting mechanism of bottle grabbing group
The bottle grabbing group is driven by a symmetrical two-way rocker
arm, that is, the rocker arm runs in the designed arc track to grab
the bottle and
Packing machine action. The design mechanism is compact, the action
is precise, and the operation is stable.

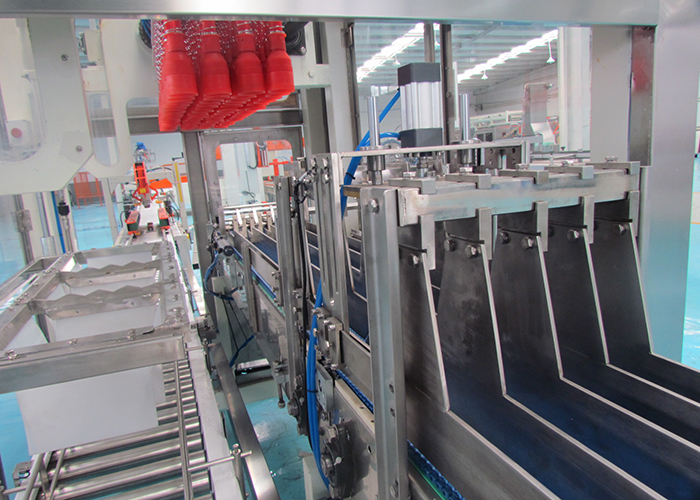

(3) Bottles enter the bottle storage conveyor belt on the packing
machine through the bottle feeding conveyor belt, and the automatic
bottle separator will transport the bottles in a single row.
The sub is automatically divided into 3 columns according to the design requirements, and the arrangement is adjusted to a suitable position
(4) The baffle plate fixes the box to the correct position by
rotating the cylinder, effectively avoiding the occurrence of tank
leakage or box breakage.
(5) The box is stationary when packing, and the box is supplied at
the same time when the box is loaded out, which maximizes work
efficiency
(6) The drive motor adopts a Sino-US joint venture variable
frequency motor, which is controlled by a frequency converter
(7) Automatic bottle separator
Controlled by a micro speed-regulating motor, the supplied bottles
are automatically divided into four channels for supply,
effectively avoiding bottle blockages and bottle squeezing.
The occurrence of the phenomenon effectively guarantees the working
efficiency of the packing machine.
(8) Bottle/box conveyor belt
The conveyor belt is driven by an asynchronous motor, and is
controlled by a frequency converter and a contactor according to
different conveying needs.
Automatic bottle feeding and discharging, automatic feeding and
unpacking, etc.
(9) Bottle grab group:
It consists of two groups of bottle grabbers, each group can grab
15 bottles at the same time, and the two groups of bottle grabbers
are driven by a cylinder to separate the spacing
(10) Safety device
The equipment is equipped with safety doors and various safety
protection and detection devices to effectively ensure the safety
of operators.
(11) Open touch screen operation is adopted, which is safer and
simpler. Built-in various fault codes and fault solutions. When a
fault occurs, the man-machine interface will display the location
of the fault, as well as the cause and solution of the fault, so as
to improve the work efficiency of maintenance personnel. The
built-in modification interface of various contingency operating
parameters can be modified in time according to the requirements of
the operator to improve the working efficiency of the equipment.
![]() |
