    Film Wrapping Automatic Secondary Packaging System 20 Bags / Min

    Ask Lasest Price
    Brand Name : SUNRISE
    Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6 units per year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Film Wrapping Automatic Secondary Packaging System 20 Bags / Min

    20 Bags Per Minute Automatic Film Wrapping Machine


    Product Introduction:

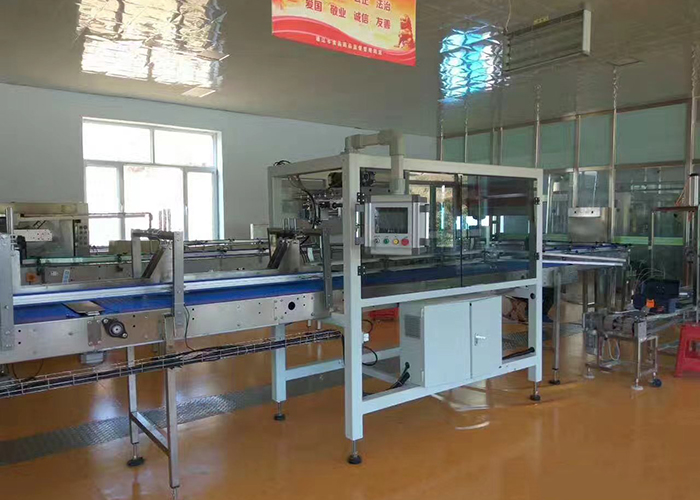

    As a packaging equipment developed and upgraded, KY25 upper and lower film sealing and cutting heat shrink packaging machine is a new packaging equipment with high efficiency and continuous operation designed and manufactured based on the characteristics of heat shrinkage of packaging film. It can automatically arrange and gather individual products (such as PET bottles) into groups, servo bottles, servo wrap films, and finally heat shrink and cool to form collective packaging. The packaged product is tightly bundled, has a regular and beautiful appearance, and saves packaging costs.


    Product Properties:


    1) Equipment size:12240×1100×2100 mm
    2) Heat shrinkable furnace size:1800×650×450 mm
    3) Packing speed:15 bags/minute-20 bags/minute
    4) Conveyor belt width:550 mm
    5) Voltage/power:380V /30KW
    6) Working pressure:0.6-0.8 Mpa
    7) Air consumption:0.3 m3/min
    8) Packaging form:upper and lower film sealing, cutting and wrapping
    9) Packing material:LDPE


    Feature:


    * Designed and manufactured specifically for high-speed packaging requirements for bottled beverages (purified water, beverages, juices, and dairy products).
    * In the process of forward transportation, the products are automatically combined into packages, saving time and improving efficiency.
    * Programmable controller (PLC) control, which can realize automated workflow
    * Constant-temperature sealing and cutting knife, with Teflon sprayed on the surface, and the cut is flat and firm.
    * Touch screen operation, friendly interface, convenient for man-machine communication and control.
    * Suitable for different bottle diameters and different combinations of packaging.


    Equipment Application:


    -Products in containers such as PET bottles, glass bottles or cans.
    -Mainly applicable products include mineral water, purified water, drinking water, beverages, beer, fruit juice, dairy products, condiments, etc.


    Product Specifications:


    1) Packaging products: 380ml/500ml/1000ml/2000ml PET bottles, glass bottles, cans and other containers for drinking water, beverages, juices and other products. To
    2) Packaging combination: 2×3, 3×4, 4×6 (or other packaging combination)
    3) Maximum packaging size: 440×300×330 mm
    4) With or without cardboard/half paper tray
