    Full Box Food & Beverage Inspection Systems 1500 cans / min

    Ask Lasest Price
    Brand Name : T-LINE
    Model Number : TJMXS60
    Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6 units per year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Full Box Food & Beverage Inspection Systems 1500 cans / min

    Full Box Food & Beverage Inspection Systems 1500 cans / min

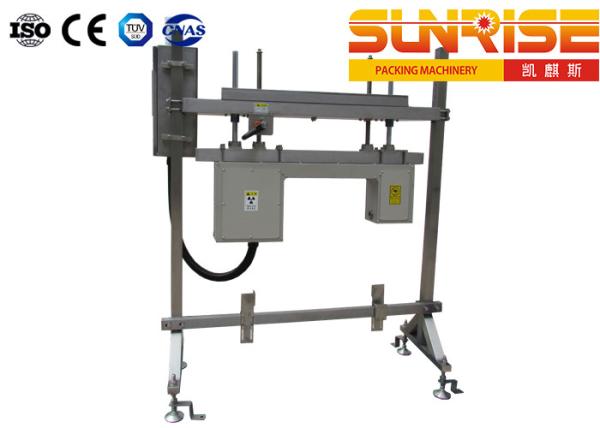

    Equipment Overview:

    The X-ray full case detector is a liquid level detection instrument developed and produced by our company that has reached the international advanced level. The instrument adopts nuclear technology and uses the principle of changing the intensity of rays after the low-energy photon source interacts with the measured substance to control the volume of the product in the detection box. Because of its non-contact measurement method, it fundamentally solves the problem that the conventional weighing method requires a large distance between the box and the box. Therefore, it is widely used in online inspection of food and beverage.

    Equipment Composition And Layout Diagram:

    The detection system is mainly composed of a man-machine interface, a differential belt, a weighing detection unit, and a rejector. The weight sensor is the core component of the device; the man-machine interface includes a touch screen, a tower lamp, and an operation interface; the rejector is the system The actuator is used to reject unqualified boxes.
    Layout diagram: single-row roller conveyor installed after the packing machine.


    Technical Parameters And Characteristics:

    --Technical Parameter:

    Dimensions:683*1428*1889mm
    Air consumption of rejector:≈6.23L/time
    Power:0.25KW
    Maximum detection speed:1500 cans/min
    External power supply:AC220V/single phase
    Temperature:0ºC-45ºC
    External air source:>0.5Mpa
    External air source flow:>500L/min
    Altitude:<3000 meters
    External air source interface:outer diameter φ12 trachea


    --Structural Features:​

    Non-contact detection
    Chinese language menu
    Color man-machine interface operation
    Up to IP65 grade chassis
    Reliable high-speed hit
    Continuous hitting alarm
    Ten product types storage
    Save 10 groups of deleted data
    Digital signal processing
    Precision hit timing encoder
    Alarm information
    Network remote control (optional)




    Accessories Brand:

    Display:Weiluntong, 11-inch touch screen;
    High voltage power supply:American Spellman
    Ray receiving tube:Japan Hamamatsu Photon
    Optoelectronics:Japan Omron;
    Cylinder:Japan SMC;
    Signal lights, circuit breakers:Schneider;
    Ray launch tube:Oxford, UK
    Industrial fan:Australia Leizike;
    Encoder:Ike, Switzerland;
    Solenoid valve:American MAC;
