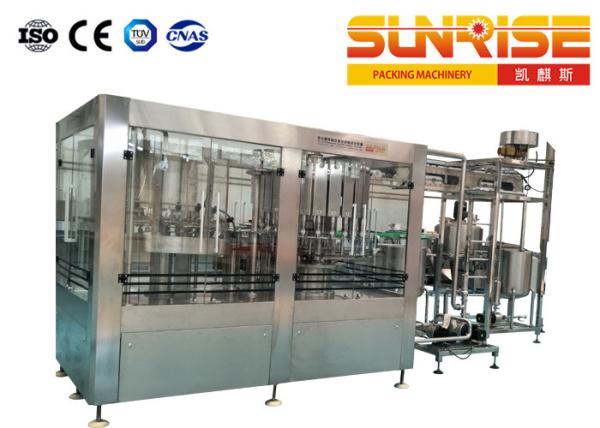

    5.5kw Hot Filling Machine , 3 In 1 Beverage Filling Equipment Washing Capping

    Ask Lasest Price
    Brand Name : SUNRISE
    Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6 units per year
    Delivery Time : 120 days
    Price : Negotiable
    Model Number : KQSHF-08
    • Product Details
    • Company Profile

    5.5kw Hot Filling Machine , 3 In 1 Beverage Filling Equipment Washing Capping


    PET Bottle Automatic Hot Filling 3 in 1 Juice Filling Machine​


    Technical parameters:

    ModelKQSHF-08
    ApplicationSpring water / mineral water / pure water / non-gas wine drink and so on
    Number of washing, filling and capping heads24-24-8
    Production capacity(500ml)8000-10000BPH
    Filling precision±3mm(liquid level)
    User Ambient Conditions

    Temperature:10~40;

    Humidity: No dew

    Suitable bottle specification

    Volume=500-2000ml

    Diameter φ=50-106

    Bottle height H=180 ~340mm

    Machine materialFood stage SS304 OR SS316
    Air source pressure (Mpa)0.5-0.6
    Power(kw)5.5kw
    Control SystemSIEMENS PLC
    Power Supply

    Voltage:220V~4150V,3phase;

    Frequency:50HZ/60HZ or your requirement

    Overall dimensions (mm)2800*2300*2500
    Weight (kg)6000
    CertificatesCE / SGS / ISO 9001/ CCC

    SUNRISE KQSHF Series Washing Filling And Capping Machine:

    Model

    Number of washing, filling

    and capping heads

    Production capacity(500ml)
    KQSHF-0616-12-63000-4000BPH
    KQSHF-06A18-18-65000~6000BPH
    KQSHF-0824-24-810000BPH
    KQSHF-1032-32-1014000BPH
    KQSHF-1240-40-1218000BPH
    KQSHF-12A50-50-1220000BPH
    KQSHF-1560-60-1524000BPH
    KQSHF-15A72-72-1828000BPH

    Application products:


    PET bottle Automatic hot filling 3 in 1 juice filling machine Suitable for washing, filling and sealing of PET bottles. This machine is used for hot filling of various beverages such as fruit juice and tea beverage. Only a few parts need to be replaced, and it is suitable for pure water and mineral water filling. In mainland China, many companies use our juice filling machines.
