    CIP System Lemon Fruit Juice Filling Machine Hot Filling

    Ask Lasest Price
    Brand Name : SUNRISE
    Model Number : KQSHF-08
    Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6 units per year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    CIP System Lemon Fruit Juice Filling Machine Hot Filling

    Lemon juice filling machine


    Product Description

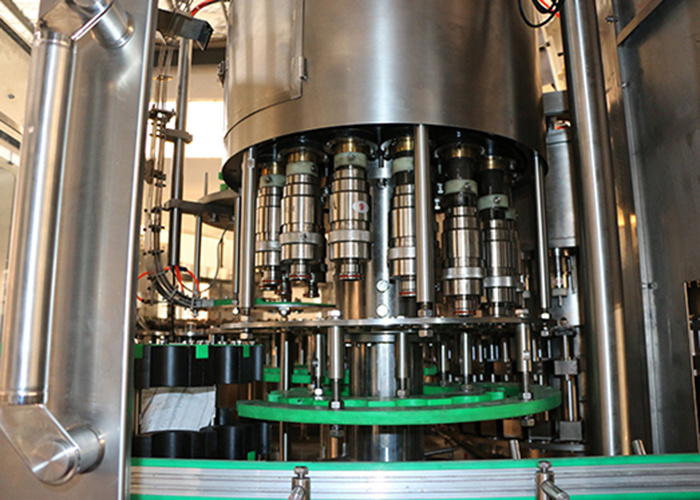

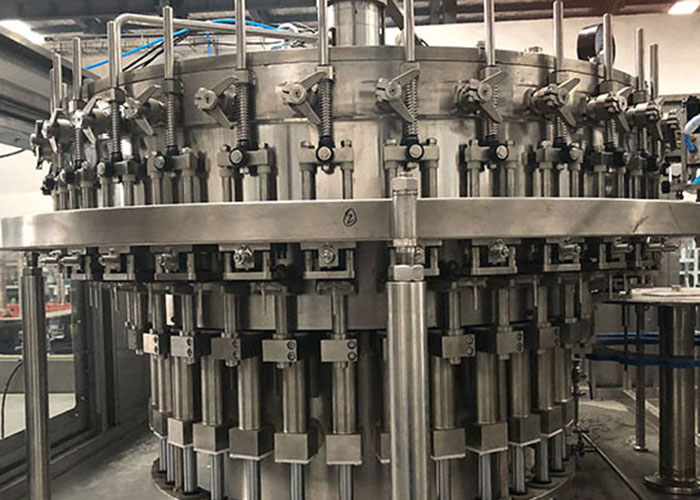

    Sunrise lemon juice filling machine incorporates rinsing, filling and capping into one and is a kind of full-automatic equipment. It is suitable for producing PET and plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Siemens PLC to control the operation and cooperated by frequency converter of the main motor. It makes the operation more stable and reliable. The photoelectric sensor is used to detect operating conditions of each section, which makes the operation of this equipment highly automatic and convenient.


    Application:


    Tea, juice, functional drink, milk beverage etc.


    Technical characteristics


    Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree. Product storage hopper and feed system adopt reasonable product feed design (constant flow, constant pressure, no foaming). Product hopper with reasonable structure (exhaust, fully close, temperature can be detected). Medium and high speed line adopts product distributor instead of large liquid carousel, which can be cleaned completely by pressure cleaning with CIP. Sanitary filling valve system umbrella-flow type structure, high speed. Perfect hot filling temperature control system. Product recycle tank system with automatic product feed startup. Perfect CIP system.


    modelKQSHF-06KQSHF-06AKQSHF-08KQSHF-10
    capacity(BPH)3000-40005000-60001000014000
    washing heads16182432
    filling heads12182432
    capping heads66810
    suitable bottlePET bottle plastic bottle
    diameter of bottle50-106mm
    height of bottle180-340mm
    suitable capplastic screw cap
    weight(kg)2800400060008000
    main motor power(kw)3.54.625.56.62


    Bottle design service


    Our engineer can design different bottle drawing for your reference!

    Contact Us: We will send design drawing


    Layout design service


    We supply standard layout for each water filling machine line,

    also available for customize design layout based on Customers Factory Area!

    Give US: Factory Area


    Label design service


    Design colorful label for customers choice

    Provide Us: Information want to put on label


    SUNRISE sales service


    Before Sales

    1.Answer your any question on us within 24 hours.

    2.Supply all information you required.

    3.Machines video for reference

    4.Welcome to visit factory


    On Sales


    1.Update production progress each week

    2.Sending machines pictures on production

    3.Machines testing running over 8 hours, and sending testing videos
