PET Bottle Carbonated Drinks Production Line SUS304 For Pomegranate
Juice
Features:
It is a unique design combining the three machines of bottle
washing, filling, and capping in one to decrease main power, to
save space and to diminish the air pollution among the three
machines.
It is automatic in total process and suitable for PET bottled juice
and tea drink which can resistant high temperature. It also can be
used for mineral water, pure water and many other no gas containing
drinks. It makes by high quality SUS304. No bottle no filling, and
no bottle no capping, automatic and easy operation.
Related Equipment:

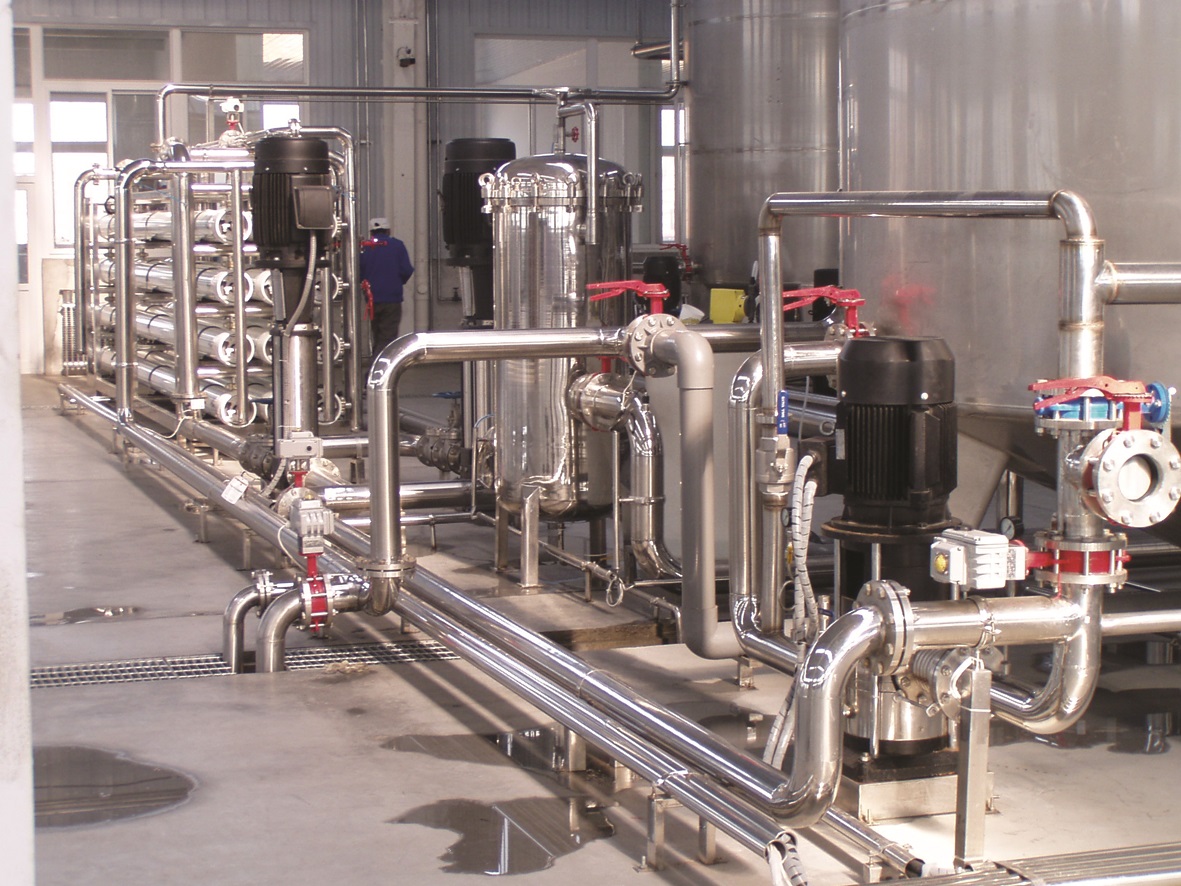

1, Water Treatment System
Water purification, before filling in the bottle
Processing included: quartz sand filter, active carbon filter,
sodium ion exchanger, precision filter, RO (Reverse Osmosis), UV
sterilizer, finished water tank
2, Juice Blending System
Concentrated fruit juice → Syrup melting pot→ Beverage pump → Syrup
filter → Blending tank → Beverage pump Double head filter →Juice
Homogenizer → Beverage pump → Vacuum degasser→ Screw pump →
Beverage tank→ Beverage pump → Super high temperature sterilizer
(UHT) → Heat insulation tank → CIP system
3, Automatic Bottle Blowing Machine
To make PET plastic bottles
Fully automatic blow molding machine is suitable for producing PET
plastic containers and bottles in all shapes. It is widely used to
produce the pure water bottle, mineral water bottle, carbonated
drink bottle, juice hot fill bottle and oil bottle etc.

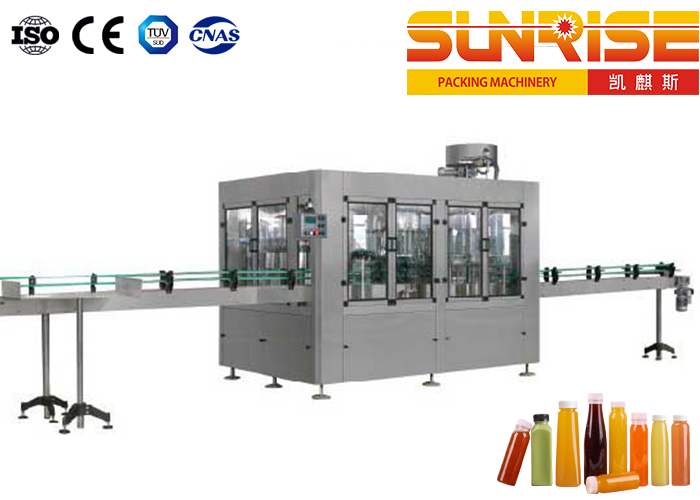

4, 3 In 1 Machine Washing Filling And Capping A, Washing Part
Rotative rinsing turret one treatment, fixed nozzles, with
grippers.
The grippers take the bottles from the inlet star-wheel while they
are still driven by the star-wheel, thus guaranteeing a safe grip.
After the gripping, the bottle is turned upside down and canted
above a spraying nozzle which directs a stream of rinse water into
the bottle.
After the draining period the bottle is turned over to an upright
position again.
b, Filling Part
The star-wheels drive the bottles always "by the neck" through the
rinsing, filling and capping steps.
If the temperature is low than the setting value, the filling
valves will stop and return the last beverage in filling valve to
recycle tank and return to UHT again to sterilize with pump.
c, Capping Part
Place and capping system, electromagnetic capping heads, with
burden discharge function, make sure minimum bottle crash during
capping.
All 304 stainless steel construction Automatic stop when lack of
bottle, no bottle no capping.

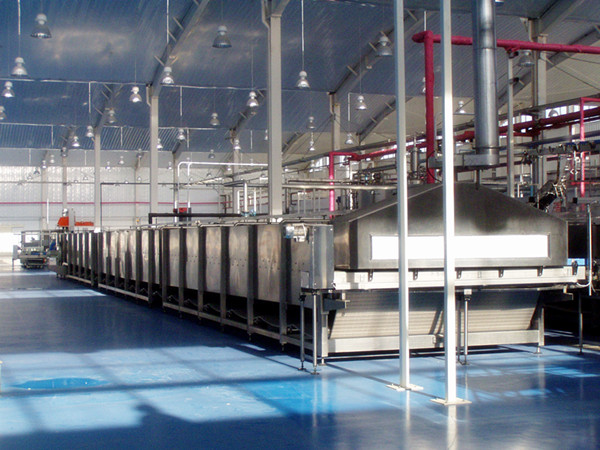

5, Pasteurization
This machine is usually used after fruit juice beverage finished
hot filling and sealing, when enter the spray tunnel, the water
with the function of high-pressure pump, uniformly spray on the
bottle body. The bottles move slowly in the chain, when they are
out the tunnel, they can reach the normal temperature, then achieve
the purpose of cooling. This machine can also be used for secondary
sterilization for fruit juice.
6, Automatic Labeling Machine
To sleeve and shrink labels on the bottle
The auto shrink sleeve labeling machine consist of auto labeling
machine, heat shrink tunnel and steam generator. This machine
adopts international advanced technology, cover the circle label on
the pet bottle. And then hot shrinking to fix on the position which
bottle body designated.
7, Automatic Packaging Machine
PE film shrink wrapping machine
It adopts the photoelectric sensor to detect online, gather signals
which are controlled by PLC, and adopts piston as executable
element, to realize product conveying, combination, film wrapping,
cutting, heat& shrink, cool, and finally get the finished product.
