    15000 BPH 500ml Automatic Drinking Water Filling KSCGF32A

    Ask Lasest Price
    Brand Name : SUNRISE
    Model Number : KSCGF32A
    Certification : CE ISO
    Price : according to customers needs
    Supply Ability : Set/Sets Per year 24-24-8 complete bottle water machine production line
    Delivery Time : 120 days
    Payment Terms : L/C, D/A, D/P, T/T
    • Product Details
    • Company Profile

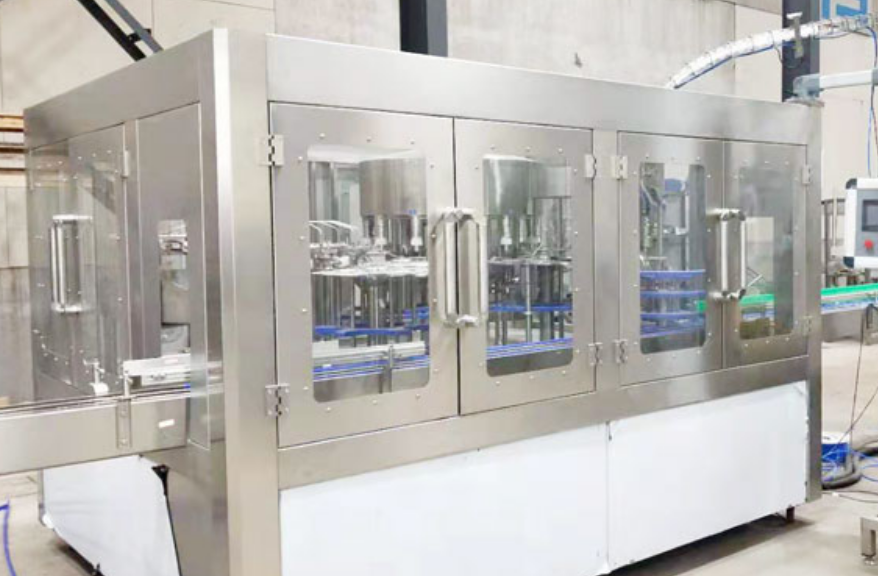

    15000 BPH 500ml Automatic Drinking Water Filling KSCGF32A

    500ml Automatic Drinking Water Filling

    mineral water plant cost :3-in-1 filling monoblock, combined with rinsing, filling and capping. It is used for water bottle rinsing ,water filling and bottle capping . It widely use for bottling filling pure water, drinking water ,mineral water, spring water, portable water ,flavored water ,sparkling water.

    Model

    KSCGF08B

    KSCGF32A

    KSCGF40A

    KSCGF60A

    Capacity12000 BPH15000 BPH24000 BPH36000 BPH
    Rinser;24Rinser;32Rinser;40Rinser;60
    ModulesFiller;24Filler;32Filler;40Fille;60
    Seamer;8Seamer;8Searner;15Seamer;20
    Bottle typePET; D=50〜97mm; H=150~320mm
    Installed capacity5kw7kw9kw11kw
    Compressed air consumption0.6Nm3/min,0.6MPa0.8Nm3/min,0.6MPa1Nm3/min,0.6MPa1.2Nm3/min,0.6MPa
    Water consumption1.5~2m3/h,0.25MPa1.5~2m3/h,0.25MPa2.5 〜4m3/h,0.25MPa3.5~6m3/h,0.25MPa
    Size3000X2300X25003360X2540X25003550X3250X25005800X4500X2500
    Weight6t7.2t10t15t
    Washout rate100%
    Filling liquid level error±3mm
    Bottle damage rateW0.08%
    Domoge rate of bottle capW0.5%
    Sealing pass rateN99.7%
    Capping torque0.6〜2.8N.m Fluctuation range ± 15%
    Liquid loss rateW0.3%

    Bottle infeed

    Bottle infeed by combination of infeed starwheels.
    Equipped with bottle jam protection device.


    Bottle Rinser
    1.The rotary wheel is a fully stainless steel welded structure.
    2.The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
    3.The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.
    4.All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
    5.The rinser is driven by driving system positioned inside machine frame via gear transmission.
    6.Made of stainless steel of superior quality.

    7.Equipped with bottle jam protection device.

    Bottle Filling

    1.Rotary wheel fully made of stainless steel SUS 304.
    2. Gravity filling method.

    3.Filling valves are made of SUS316L.
    4. Filling valves are reasonably structured with accurate filling.
    5.Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
    6.Level of cylinder is controlled with float-ball.
    7.Filler is driven through gears inside the machine frame.
    8.Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.

    Bottle Capping
    1.It import of advanced technology of screw capping, improve the stability and reliability of the screw capping machine. The magnetic torque is used for screw capping. the power of screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
    2.In the screw capping part. it installed photoelectrical control , when it has no cap ,or the cap is bad, the machine will stop automatically.
