    12000 Bph Mineral Water Water Filling Machine

    Ask Lasest Price
    Brand Name : SUNRISE
    Model Number : KSCGF
    Certification : CE
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 120 days
    • Product Details
    • Company Profile

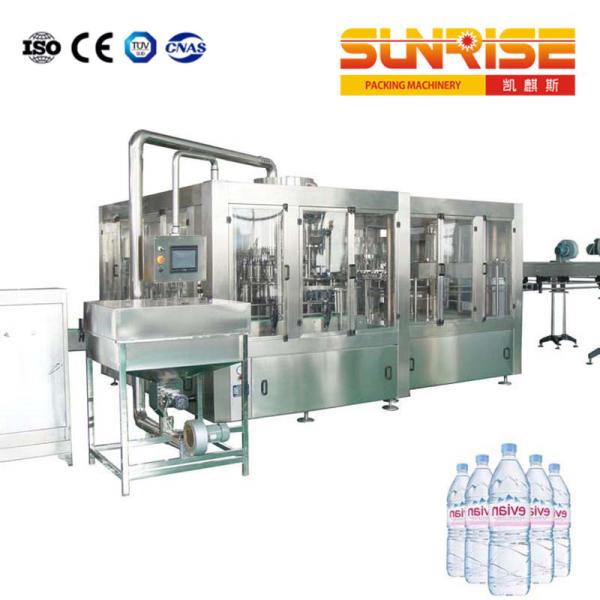

    12000 Bph Mineral Water Water Filling Machine

    SUNRISE-AUTOMATIC COMPLETE WATER FILLING LINE

    KEY FEATURES OF THE WATER FILLING MACHINE


    KSCGF series bottle water filling machine is used to fill natural spring still water, mineral purified water, carbonated
    water,flavored water into PET bottle; Glass bottle is also suitable, just need to change the conveyor parts.
    ● Different models can satisfy various requirement of output from 2000BPH to 36000BPH;Bottle volume application 200ml-2000ml.(Also can be customized according to requirements)
    ● The water bottling machine, combined with rinsing, filling and capping, it is mainly made of SUS304/ SUS316.
    ● Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan’s Mitsubishi, France Schneider, OMRON,ABB ;
    ● High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
    ● Screw capper adopts French advanced technologies which can screw cap promptly when clamping bottle
    ● Central greasing oil system can grease all bearings easily.
    ● Filling accuracy is more or less than 1%.
    ● We can provide complete beverage ideal solution - blowing. filling. packing for PET,PLASTIC,GLASS bottle.
    ● Easy to operate, save the cost for workers
    .
    PACKAGE & SPECIFICATIONS
    Full Automatic Complete PET bottle drink water Production Line( 8000-36000bph)
    Gravity filling
    Material
    Shape
    Filling volume
    Filling level
    (mm)
    Neck type
    PET Plastic Bottle
    Square or Round
    Bottle
    200-2000ml
    Distance from bottle neck
    According to request
    As request
    Adjustable specifications of the bottle type
    Bottle diameter ≤105mm Bottle Height≤335mm
    Additional spare parts are needed for different volume bottles
    Labeling & Packing System
    Packing system
    Palletizer
    Hot Melt OPP Label
    PVC Sleeve Shrink Label
    Self-Adhesive Sticker Label
    Full Label/ Half Label
    Manual / Automatic
    Packing system
    Min, Spec.
    Manual
    Low position gantry palletizer
    Robot Palletizer
    High position gantry palletizer
    Single Arm Palletizer
    Manual Palletizer
    Manual
    Film shrink packing
    Wrap Around packing
    Robert Packing Machine
    1*2
    2*3
    3*4
    4*6
    3*5
    User Ambient Conditions
    Temperature:10~40℃;Humidity:No dew
    User Electrical Supply Specification
    Voltage:380V±5%, 3phase; Frequency:50HZ±1%

    Machines Details

    Washing heads

    ● Into bottle way is air conveyor direct connection with bottle dial.

    ● All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
    ● 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
    ● 304/316 stainless steel washing pump make the machine more durable.

    Filling nozzles

    ● 304/316 Stainless steel high precision filling nozzle
    ● Filling volume adjustable in fine rank, same liquid level after filling
    ● All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
    ● 304/316 stainless steel filling pump
    ● Efficient spray nozzle rinse thoroughly and save water for flushing

    Screw cover capping heads

    ● Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
    ● All 304/316 stainless steel construction
    ● No bottle no capping
    ● Automatic stop when lack of bottle
    Capping effect is stable and reliable, Defective rate ≤0.2%

    Water treatment/purification system
    Raw water tank + Raw water pump
    Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
    Reverse Osmosis (one level)
    UV sterilizer
    Finished water tank + Pure water pump
    Stainless steel high pressure film shell
    All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
    Online type pressure auto self-protection device
    Online type electricity indicator (with stable compensation)
    System safe protecting and alarm system
    System frame
