    Mineral Water PET Bottle Bottle Blowing Machine

    Ask Lasest Price
    Brand Name : SUNRISE
    Model Number : KCGJ350
    Certification : EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 6 units per year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    Mineral Water PET Bottle Bottle Blowing Machine

    Mineral Water Pet Bottle Blowing Machine Product Introduction


    KCGJ350 series Main structure and characteristics:


    1. The whole is made of SUS304 stainless steel, equipped with a special protective cover, and the product design is beautiful and generous.

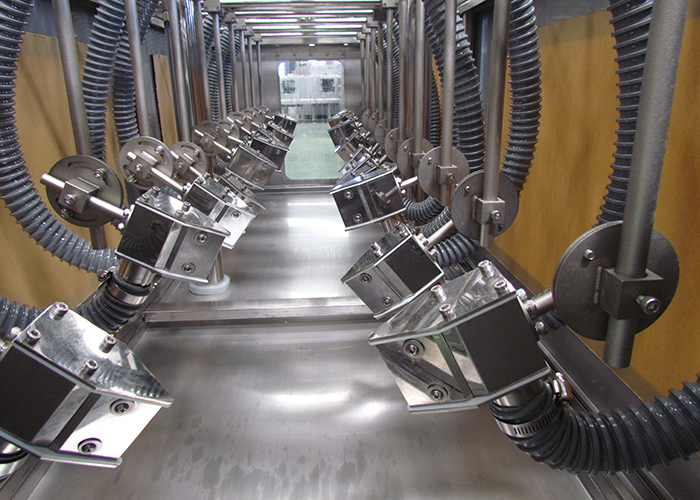

    2. Adopt the special air knife imported from Germany SUS304 material, the width of the air outlet is 1mm, the adjustable range is 0.3mm-3mm, and the effective length is up to 1200mm, which can adapt to the drying requirements of the tank in different environments.
    3. The dedicated air knife mounting bracket can adjust the angle of the air knife to perfectly blow off the residual moisture on the surface of the tank.
    4. The pressure-resistant hose made of PVC material imported from South Korea is used to greatly improve the pressure resistance and anti-aging performance.


    Product Properties


    1. Production capacity:720 cans/min
    2. Total power:11kw
    3. Total weight:200kg
    4. Power supply:3X380VX50Hz
    5. Dimensions:length 2400mmX width 850mmX height 1600mm
    6. Number of wind knives:20
    7. Number of vortex pumps:2
    8. Vortex air pump:power 5.5KW, maximum flow is 700m3/h, maximum pressure: 180mbar
    9. Maximum height of adaptable bottle:160mm
    10. Conveying surface height:1100±50


    1. The high-pressure fan is equipped with a stainless steel filter to prevent dust particles in the air from entering the fan and improve the service life of the equipment.


    2. Designed with a drip tray, which can effectively collect the dried water droplets and discharge them uniformly to ensure the surrounding environment is dry and clean.


    3. The overall installation of the equipment is simple, easy to adjust, low noise, and the installation position can be adjusted according to site requirements.


    4. The vortex air pump adopts sound-absorbing cotton material, which can effectively reduce the operating noise of the equipment.
